FEATURES

SHGC G b 2

Solar control​

Suntuitive's adaptability means the Solar Heat Gain Coefficient (SHGC) varies between 0.32 and 0.13 depending on the intensity of the sun.

snow1 b 2

Thermal insulation

Unlike permanent dark tints, Suntuitive lets the sun in when it's needed and blocks it when it's not, for better insulated buildings.

dynamic g b2

Dynamic tint

Suntuitive's dynamic tint adjusts the light transmission depending on the sun's position, mitigating the need for blinds or overhangs.

dollar2 b 2

Energy saving

Suntuitive manages a building’s changing needs for passive solar heat gain and natural daylight to lower heating, air conditioning and artificial lighting loads.

VLT G2 b 2

Visibility

Suntuitive's best feature is the ability to adjust the Visible Light Transmission (VLT) from 54-11% as needed over the day.

fade2 b 2

Fade protection

Suntuitive completely blocks UV light, for the most superior fade protection.

Dynamic Glass In Action

The below cafe shows how the glass adapts it’s tint according to the position of the sun. In the morning the glass is at its clear state, allowing full natural light. In the afternoon only the window facing the sun is at full tint to block excessive heat gain and in the evening it returns to clear.

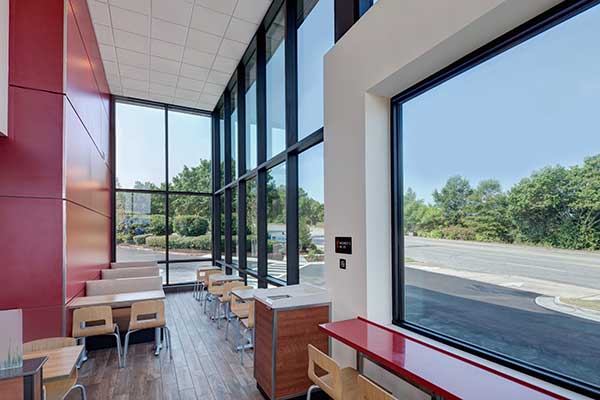

Suntuitive Wendys internal in the morning
Morning

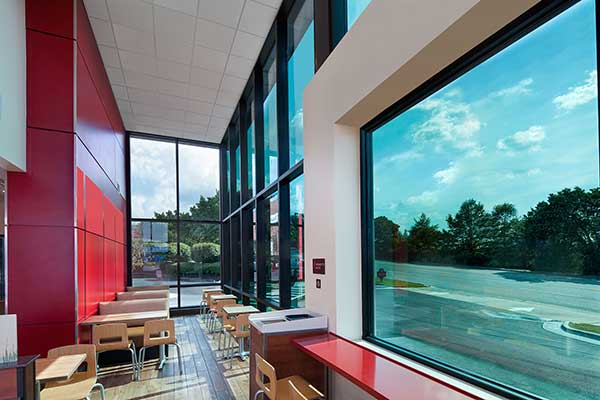

Afternoon

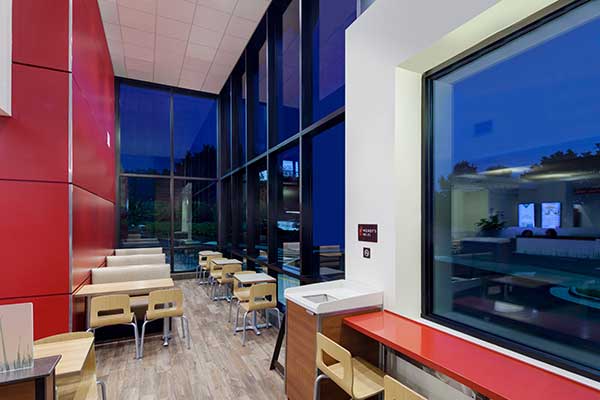

Suntuitive. Wendys internal at night
Night

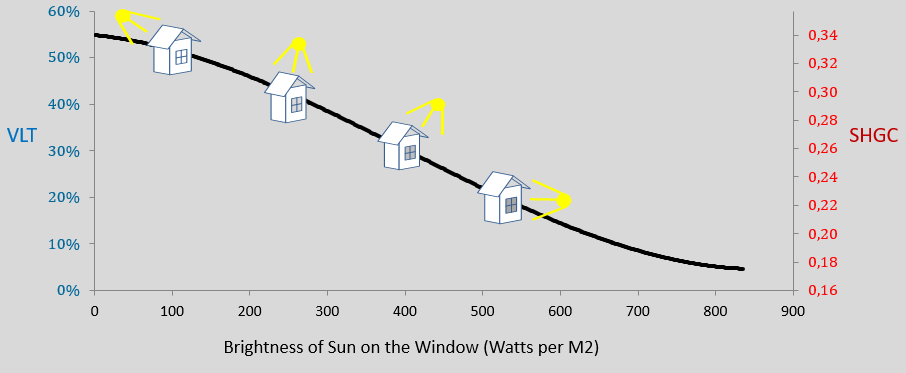

Variable light transmission (VLT) and heat gain (SHGC)

Dynamic glazing is able to adjust the Visible Light Transmission (VLT) and Solar Heat Gain Coefficient (SHGC) based on the position and intensity of the sun.

As the sun moves around the building throughout the day, the VLT and SHGC adapt accordingly. When the window receives direct sunlight, it will be at its full tint in order to block accessive heat gain. Then when the sun sets the window will return to its minimally tinted state to allow in more natural light, as illustrated below. A likeminded graph of a regular IGU with a fixed tint would show a straight line signifying a static VLT and SHGC no matter the position or intensity of the sun.



Suntuitive variable VLT SHGC 2

SPECIFICATIONS

Glass Options​

  • Available in many glazing configurations and glass colours/types

Glazing options​

  • Retrofit, replacement and new construction in both commercial and residential applications
  • Vertical or sloped glazing,  curved or shaped
  • Combine with the best Low-E coating in an IGU for unprecedented performance

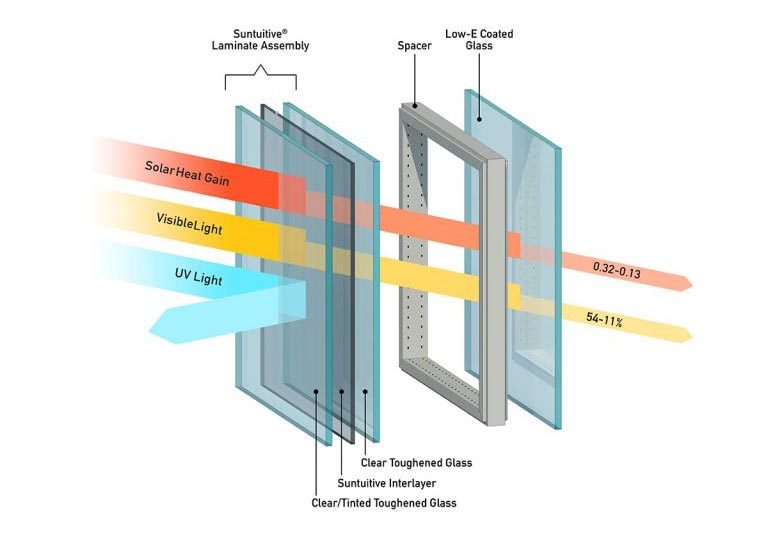

Typical IGU Assembly

1Standard Suntuitive Construction Australia DIN 768x575 1

APPLICATIONS

The variable performance of Suntuitive compared to either clear or tinted windows (with fixed performance), makes it ideal for commercial facades, public spaces, western facing windows and skylights, including but not limited to the following:

Offices

  • Access to natural light is proven to improve productivity and morale
  • Improved health and less absenteeism due to less artificial lighting and temperature control

Healthcare

  • More hygienic than blinds
  • Patients recover quicker with access to natural light

Hospitality

  • More practical than blinds
  • Patrons more comfortable thanks to less artificial light and temperature control
  • Lower energy bills

Education

  • Students proven to concentrate better with access natural light
  • Less spread of illness due to less artificial temperature control
  • Lower energy bills

Green Star projects

  • Potential points for ‘Innovation’
  • Gain points for ‘access to natural light’
  • Energy saving/reduce emissions

PERFORMANCE

A few example glass make-ups shown below. Please contact Glassworks if you require data for a specific make-up that is not represented here.

suntuitive3
Light TransmissionReflectanceSolar Heat GainU-Value
Regular tinted IGU
6mm Grey
12mm Argon
6mm Clear
37%12%0.452.5
Suntuitive® + LoĒ³-366® in an IGU
8.5mm Suntuitive
12mm Argon
6mm LoĒ³-366® Clear
50 - 11%8%0.32 - 0.131.35
Grey Suntuitive® + LoĒ³-366® in an IGU
8.5mm Suntuitive Grey lam
12mm Argon
6mm LoĒ³-366 Clear
26 - 5%8%0.21 - 0.131.33

Centre of glass calculated using LBNL Window 7.3 based on NFRC 100 environmental conditions
