FEATURES

SHGC G d

Solar control​

LoE³-366® blocks harshness of the sun with a low Solar Heat Gain Coefficient (SHGC) of 0.27 on Clear compared with 0.67 of regular low-E double glazed.

snow1 d

Thermal insulation

When room temperature falls below 11 degrees there is the risk of thermal discomfort inside the room. It has a low U-Value of just 1.35 compared to 1.6 of regular low-E double glazed.

CLEAN G d

Easy-clean coating

LoE³-366® comes standard with Neat, a titanium dioxide layer which harnesses the sun’s rays to loosen dirt so the rain can wash it away with minimal streaks.

dollar2 d

Energy saving

The ability to naturally cool, warm and light up a building results in far lower energy bills.

VLT G2 d

High visibility

LoE³-366® boasts a Visible Light Transmission (VLT) figure of 61% in certain IGU make ups, meaning natural light is able to enter the building

fade2 d

Fade protection

LoE³-366® blocks 95% of the sun’s damaging UV rays, a leading cause of fading

SPECIFICATIONS

Glass Options

  • Available on Clear or Grey glass

Glazing options

  • Double glazed in an Insulated Glass Unit (IGU) on surface 2
  • Can be paired up with LoE-i89 on surface 4 for unprecedented performance

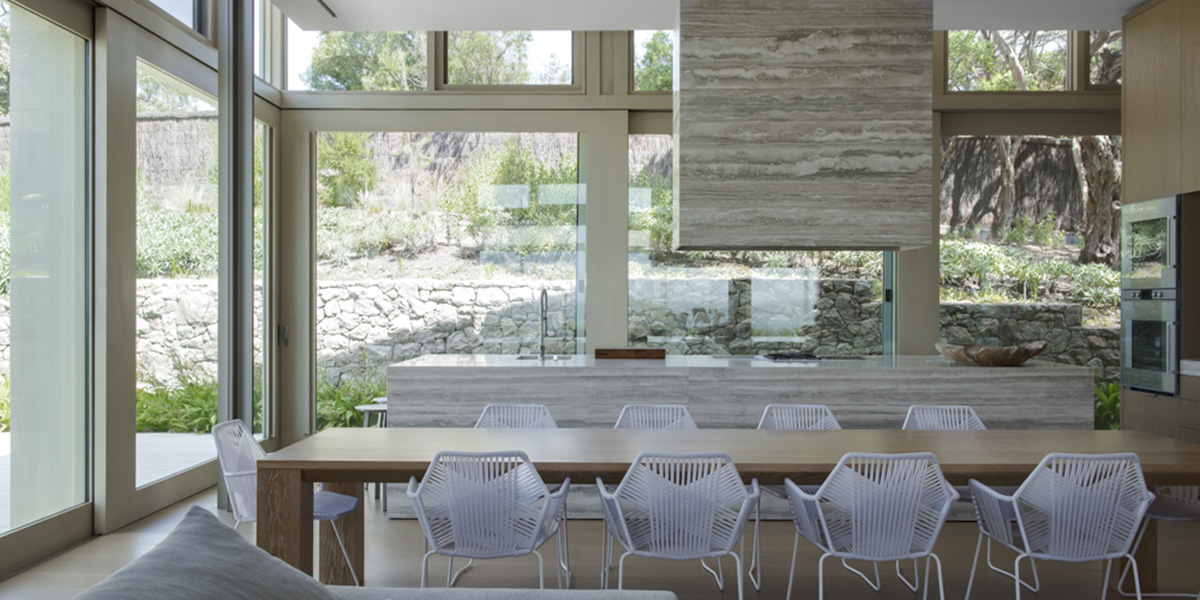

image 2 1

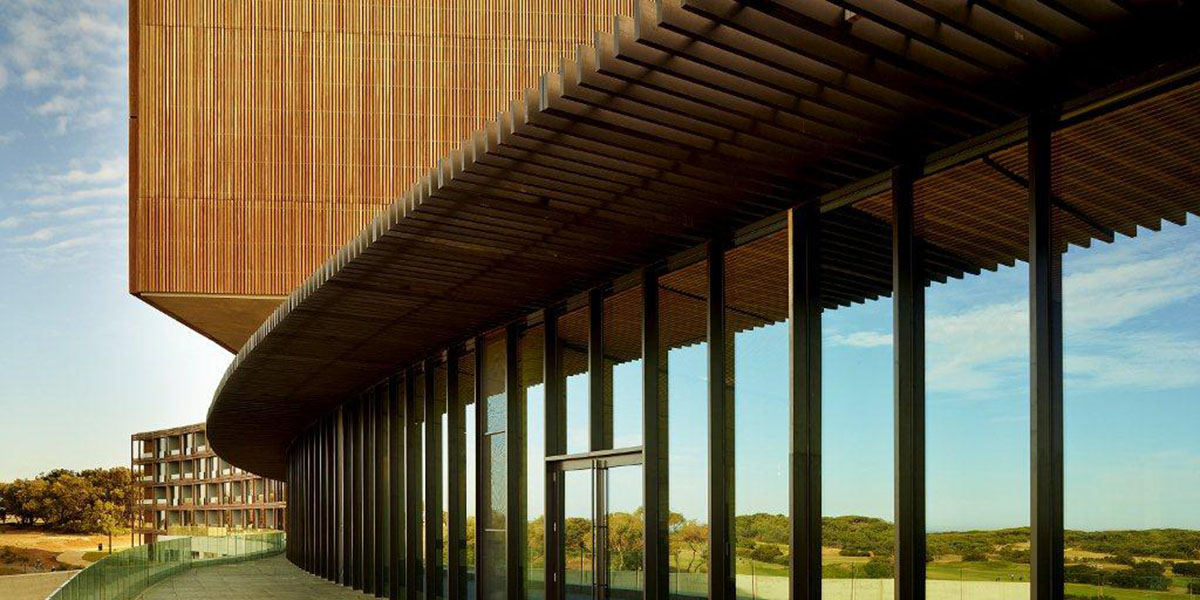

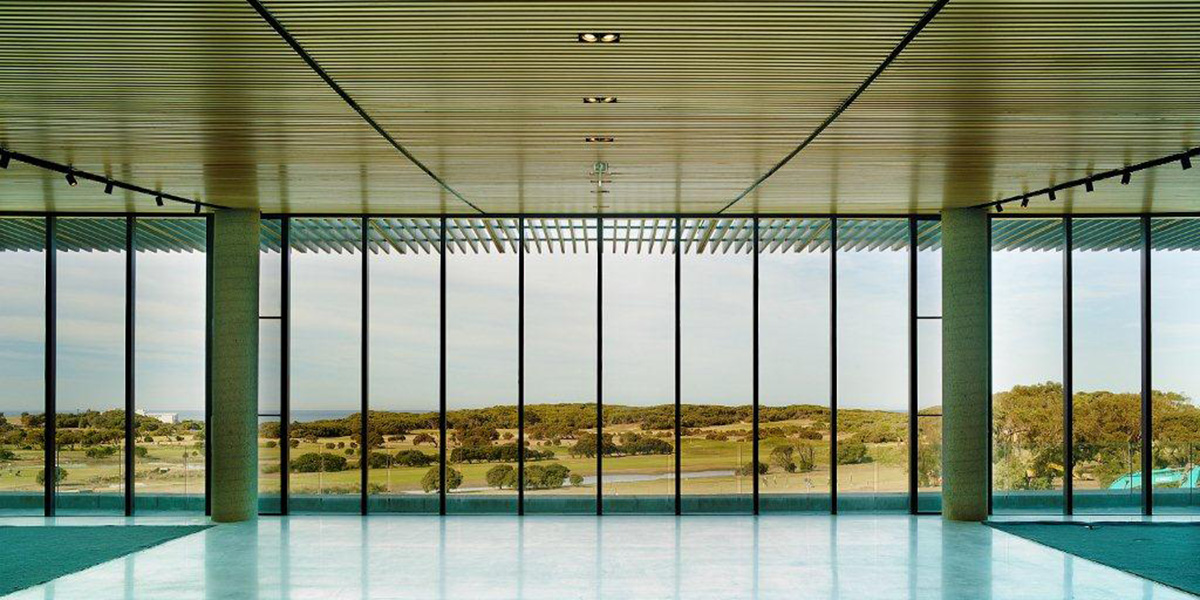

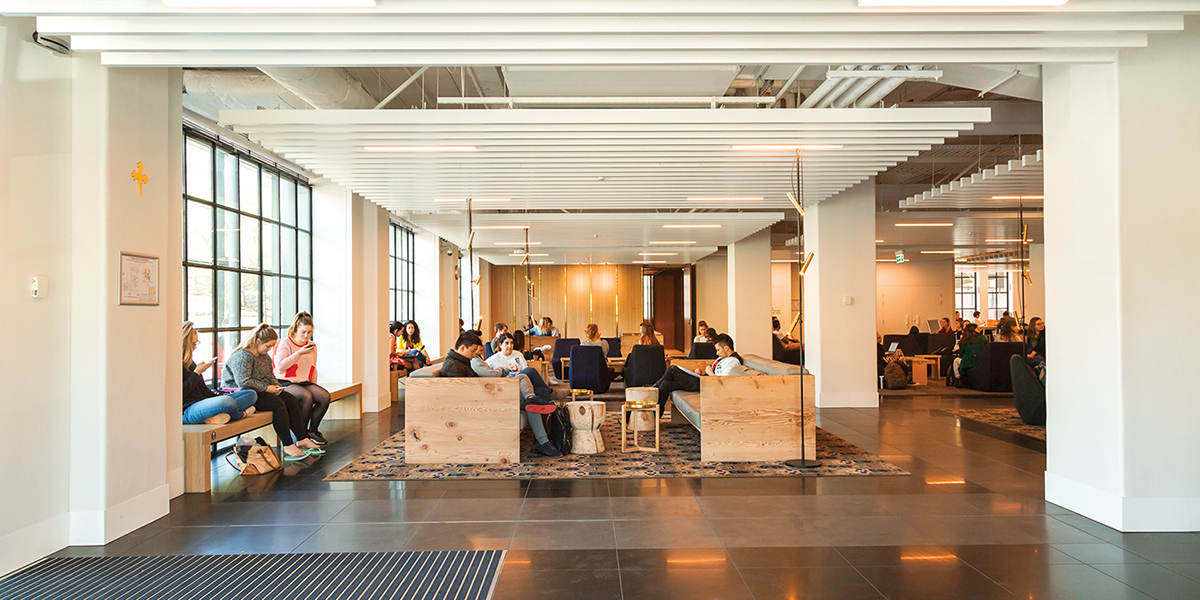

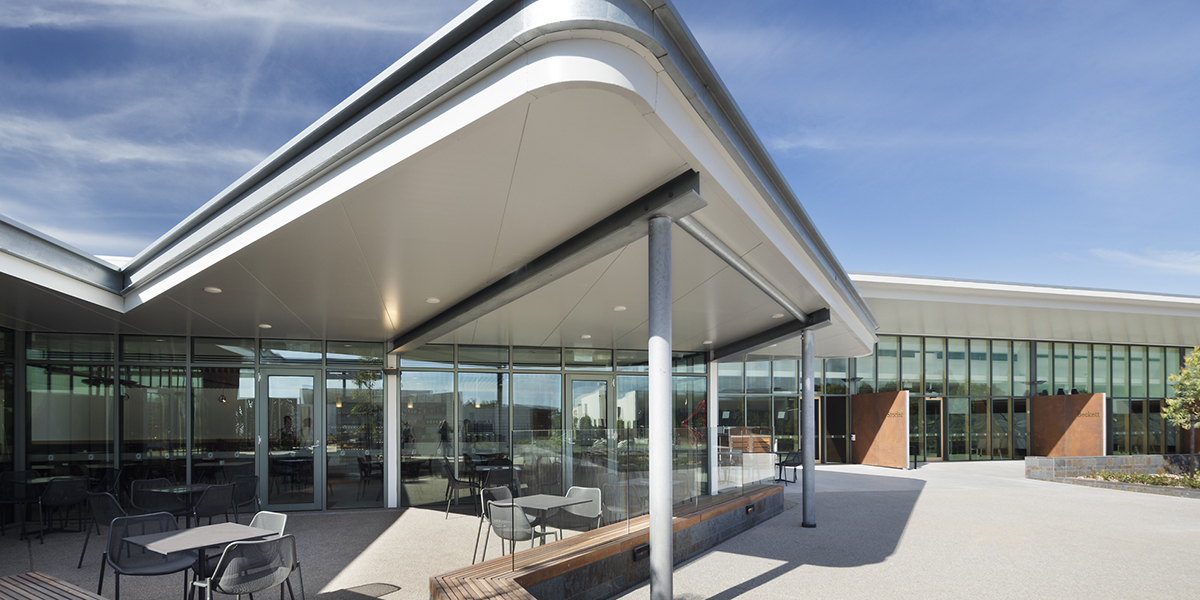

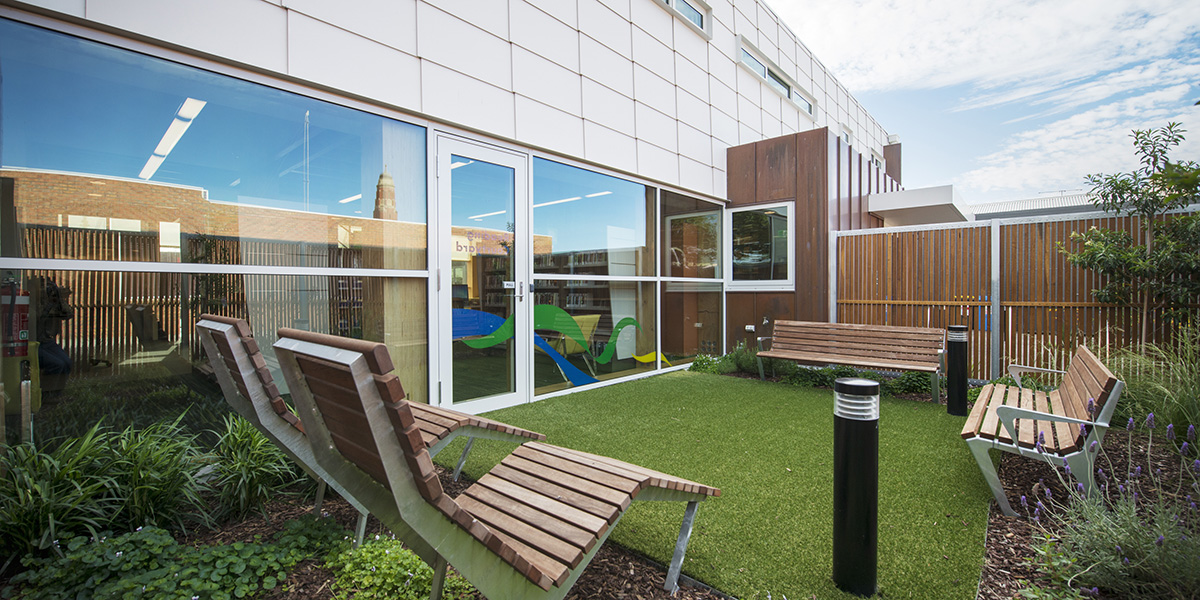

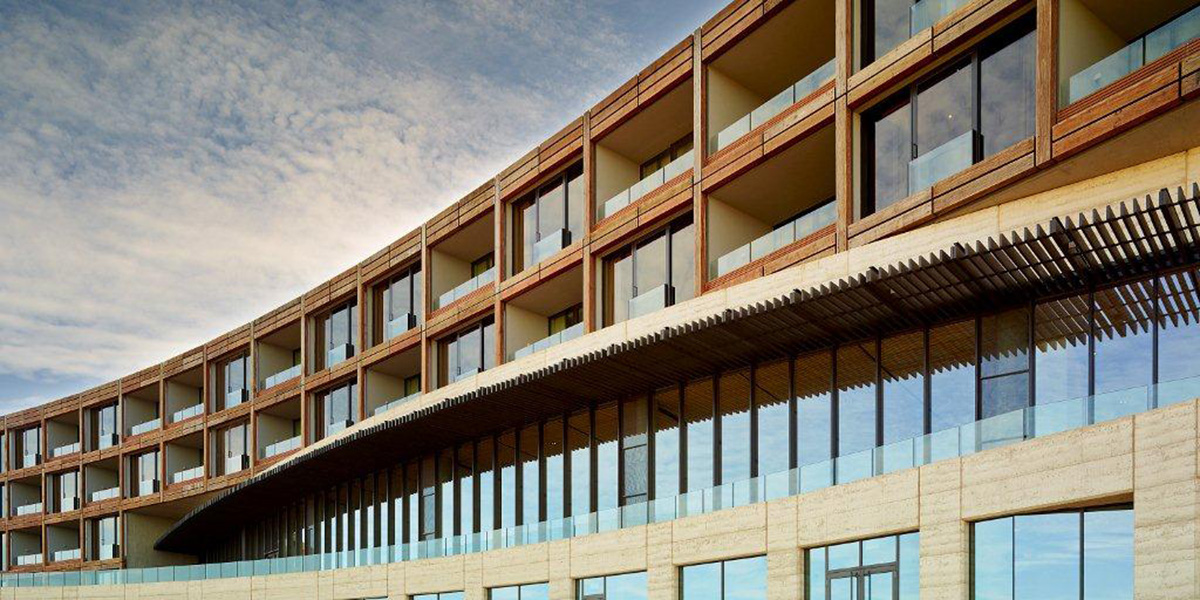

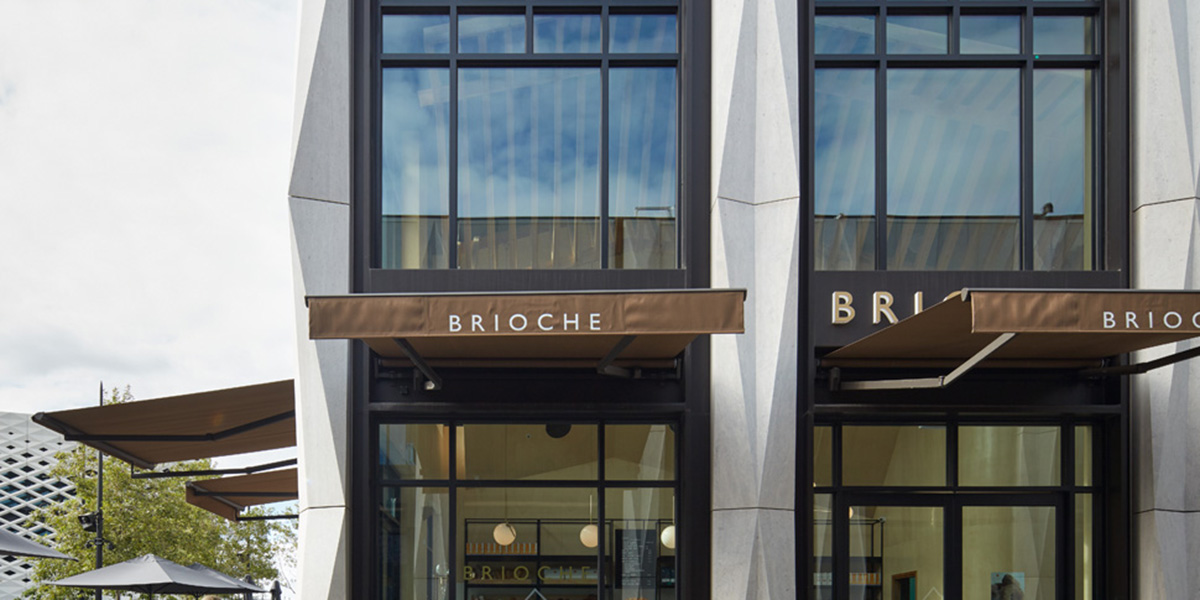

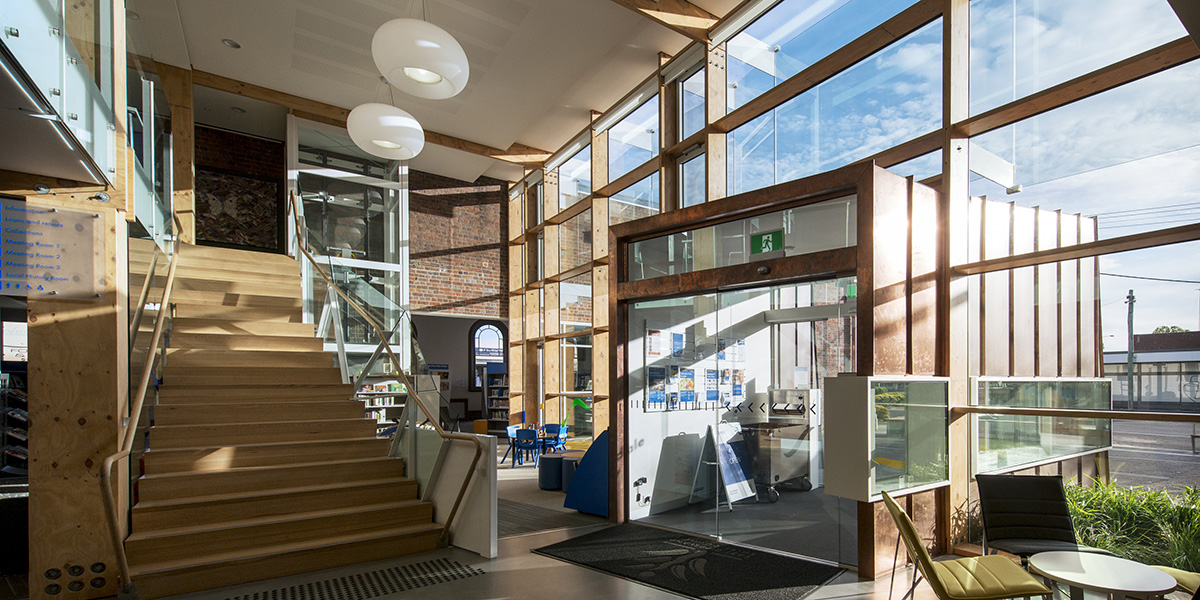

APPLICATIONS

The neutral appearance and superior performance of LoE³-366 makes it the glass for all applications and all seasons. Because it balances VLT and SHGC so well, we recommend it for both commercial and residential applications in hot or cold climates but especially those prone to temperature fluctuations.

Commercial applications:

  • Education facilities
  • Accommodation
  • Public spaces
  • Hospitality
  • Office buildings
  • Healthcare
  • Green Star projects

Residential applications:

  • High-end residential
  • Multi-res,
  • High energy-rated homes

PERFORMANCE

A few example glass make-ups shown below. Please contact Glassworks if you require data for a specific make-up that is not represented here.

366
Light TransmissionReflectanceSolar Heat GainU-Value
Typical low-E IGU
6mm Clear Low-E
12mm Argon
6mm clear
73%17%0.671.6
LoĒ³-366® IGU
6mm LoĒ³-366® Clear
12mm Argon
6mm clear
63%11%0.271.35
LoĒ³-366® (surface 2) With LoĒ³-i89 (surface 4)
4mm LoĒ³-366® Clear
12mm Argon
4mm LoĒ³-i89
63%11%0.271.1

Centre of glass calculated using LBNL Window 7.3 based on NFRC 100 environmental conditions
